Solutions

Why choose RXL?

We at RXL understand and value your individual needs and thrive on delivering first class service. We appreciate that time, quality & cost are the essential ingredients to a successful business partnership and mutual growth. RXL manufactures products under one roof allowing you to focus on your core business activities with absolute peace of mind.

2″ Global Cable Runway

2” Global Cable Runway provides a solution to cable pathway routes. Fully RoHS 2011/65/EU Compliant. Includes complete hardware, accessories and support options. Offered in both powder coated and zinc plated finishes.

2″ Telco Style Cable Runway

2” Telco Style Cable Runway provides a solution to cable pathway routes. Fully RoHS 2011/65/EU Compliant. Includes complete hardware, accessories and support options. Offered in both powder coated and zinc plated finishes.

Aluminum Cable Tray

Our aluminum cable tray products support and manage all cabling requirements.

Cable Runway Center Support Kits

The Center Support Kit attaches Cable Runway to the ceiling. Each kit includes one Center Support Bracket, one re-inforcement beam, two 5/8-11 hex nuts, one 5/8 split lock washer, one 12 inch long threaded rod cover and one J-bolt kit. Use part # 1226 for 2 inch high version. Choice of powder coated finish.

Cable Runway Corner Brackets

The Cable Runway Corner Bracket is used to create intersections between cable runway sections and can be used to form L, T or X type junctions. Manufactured from rectangular (3/8” x 1.5” x .065”) steel tubing (9.53mm x 38mm x 1.65mm). Kit contains mounting brackets and hardware for easy installation. Choice of powder coated finish.

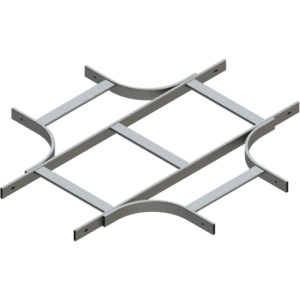

Cable Runway Cross Sections

Use the Cross Section when creating an “X” intersection. Eliminates the stringer at the intersection thus allowing for a smooth flat continued transition. Available in both the 1.5”H Telco Style Cable Runway and 2”H Telco Style Cable Runway. Choice of powder coated finish.

Cable Runway E-Bends

When installed horizontally creates an easy 90° turn between the individual cable runway parts. Manufactured from rectangular steel tubing and has cross members welded on 23° increments to allow a nice 90° sweep to either side. Choice of powder coated finish.

Cable Runway Patch Rack Kits

The Cable Runway Patch Rack is designed to attach to the Cable Runway stringer above a rack or cabinet for additional equipment mounting space. Choice of powder coated finish.

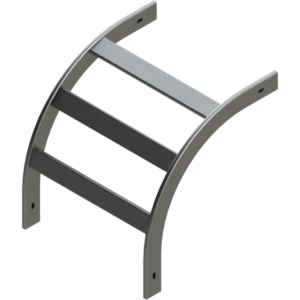

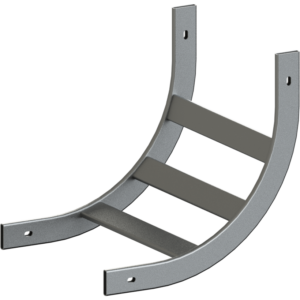

Cable Runway Radius Bend

The Radius Bend creates a 90 Degree vertical bend for cable runs. Manufactured from rectangular (3/8” x 1.5” x .065”) steel tubing (9.53 mm x 38 mm x 1.65 mm) with three cross members welded on 23° increments. Choice of powder coated finish.

Cable Runway Radius Drops

Radius Drops attach to the cross member or stringer to help maintain smooth drops of cable. Provides 3 inch (76mm) bend radius. Choice of powder coated finish.

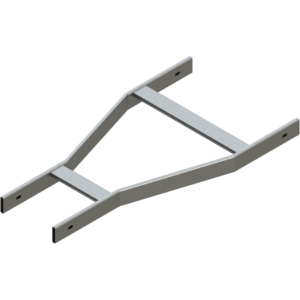

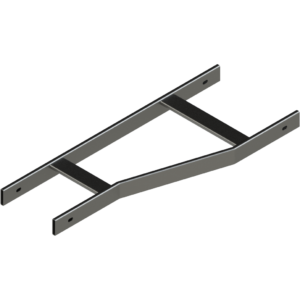

Cable Runway Reducer 18″-12″

The Cable Runway Reducer is the solution for changing runway widths quickly. Each Reducer is 18” long and has two Cross Members. One on the short end and one on the longer end. Each Cable Runway Reducer comes with two splice kits. We recommend using a Center Support Kit when using a reducer. Choice of powder coated finish.

Cable Runway Support Brackets

The Support Bracket secures threaded rod to Cable Runway. Finish is black or clear chem film over zinc plating. Please note: Hardware not included and must be ordered separately.

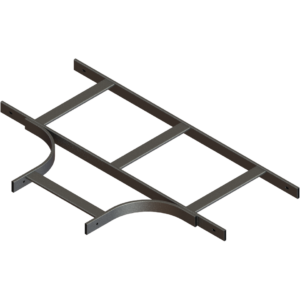

Cable Runway Tee Sections

Use the Tee Section when creating a “T” intersection. Eliminates stringer at the intersection, thus allowing for a smooth flat continued transition. Available in both the 1.5” & 2” Style Cable Runway. Choice of powder coated finish.

Cable Runway Threaded Ceiling Kits

The Ceiling Support Kit is used to attach threaded rod to the ceiling. Finish is black or clear chem film over zinc plating. Please note: Lag bolts not included.

Cable Runway Wall to Rack Kit

Wall to Rack Kit helps with providing support for cable between the rack and the wall.

Ceiling Support Brackets

The Ceiling Support Bracket is used to attach threaded rod to the ceiling. Finish is black or clear chem film over zinc plating. Please note: Hardware not included and must be ordered separately.

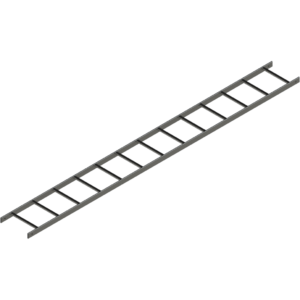

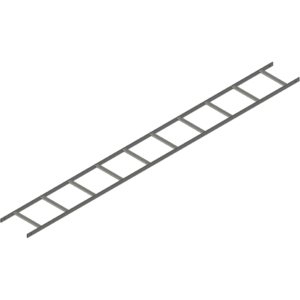

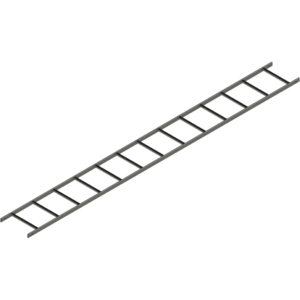

Global Cable Runway

Global Cable Runway provides a solution to cable pathway routes. Fully RoHS 2011/65/EU Compliant. Hardware, accessories and support options are available for this product line. Offered in both powder coated and zinc plated finishes.

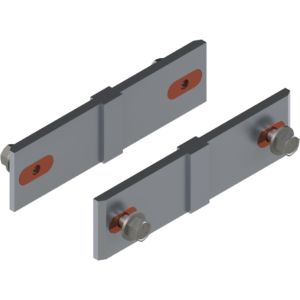

Grounding Butt Splice Kit-1099-AL-01

Introducing RXL’s Patented Grounding Butt Splice Kit made of 1075 Spring Steel. Reduce your labor costs while saving both time & money.

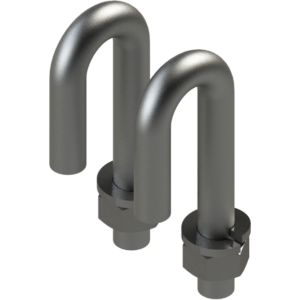

RXL-1001 J-Bolt Kit

Colors: Black Zinc
Length: 2.25" / 3.25" / 3.75"

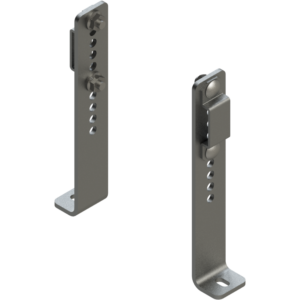

RXL-1003 Elevation Brackets

Colors: Black / White
Stringer: 1.5" / 2"
Offset Height: 1"-3" / 4"-6" / 10"-12"
RXL-1005 Rack to Runway Mounting Plate

Colors: Black / White
Runway Width: 6" / 12" / 18" / 24"

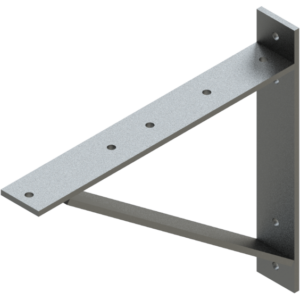

RXL-1006 Aluminum Triangle Bracket

Colors: Black / White
Runway Width: 6" / 12" / 18"

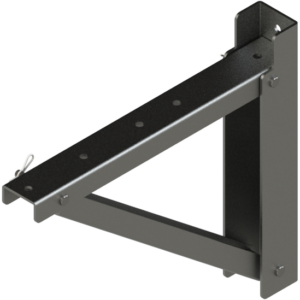

RXL-1007 Modular Triangle Bracket

Colors: Black / White
Runway Width: 6" / 12" / 18"

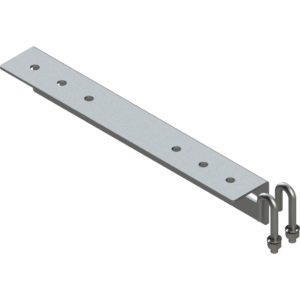

RXL-1008 Wall Angle Kit

Colors: Black / White
Runway Width: 6" / 12" / 18" / 24"

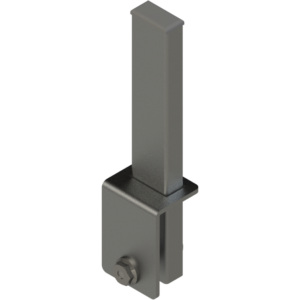

RXL-1009 Cable Retaining Post

Colors: Black / White
Stringer: 1.5" / 2"
Height: 6" / 8" / 10"

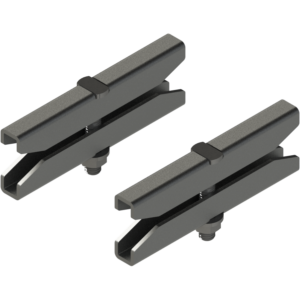

RXL-1010 Butt Splice Kit

Colors: Black Zinc
Stringer: 1.5" / 2"

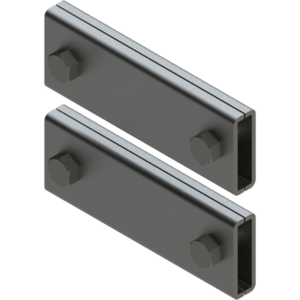

RXL-1011 Heavy Duty Butt Splice

Colors: Black Zinc
Stringer: 1.5" / 2"

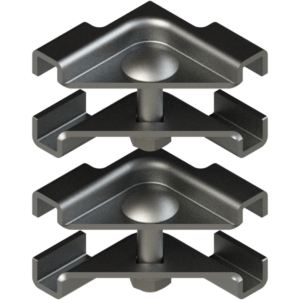

RXL-1012 Junction Splice Kits

Colors: Black Zinc
Stringer: 1.5" / 2"

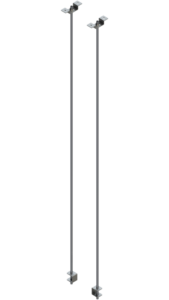

RXL-1017 Threaded Ceiling Kit

Colors: (Zinc Rod) | Black / White
Stringer: 1.5" / 2"
Thread: 3/8"-16 | 5/8"-11 | 1/2"-13

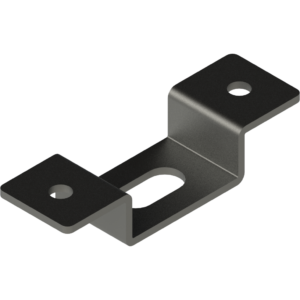

RXL-1019 Ceiling Support Brackets

Colors: Clear Zinc / Black
Length: 10'
Thread: 3/8"-16 | 5/8"-11 | 1/2"-13

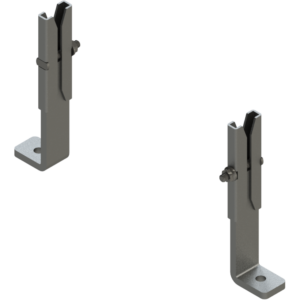

RXL-1020 Foot Kit

Colors: Black
Stringer: 1.5" / 2"

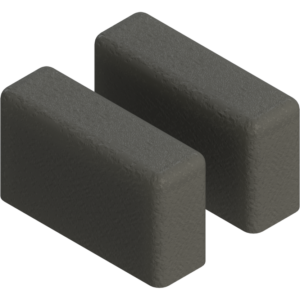

RXL-1024 Stringer End Caps

Colors: Black
Stringer: 1.5" / 2"

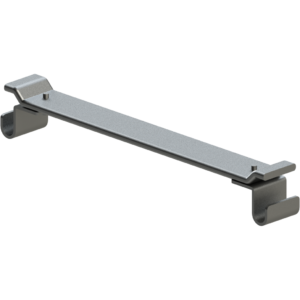

RXL-1025 Movable Cross Section

Colors: Black / White
Runway Width: 9" / 12" / 18"

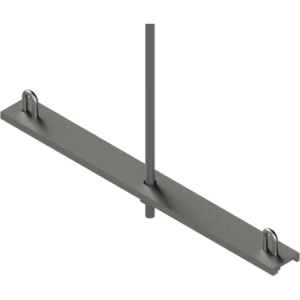

RXL-1026 Center Support Bracket

Colors: Black / White
Runway Width: 9" / 12" / 18"

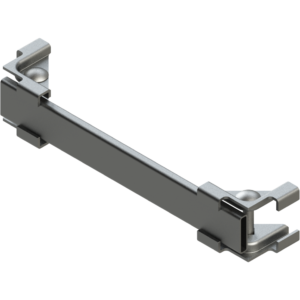

RXL-1027 End Termination Kit

Colors: Black / White
Runway Width: 6" / 9" / 12" / 18" / 24" / 30" / 36"

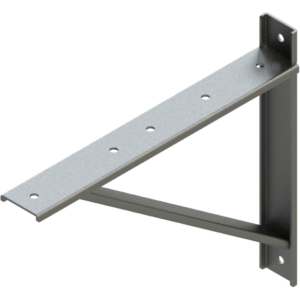

RXL-1029 Steel Triangle Bracket

Colors: Black / White
Runway Width: 6" / 12" / 18"

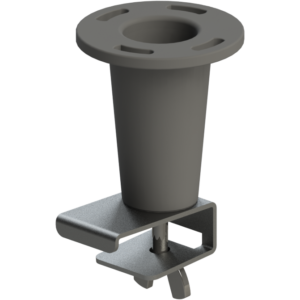

RXL-1039 Cable Spool Divider

Colors: Black
Stringer: 1.5" / 2"

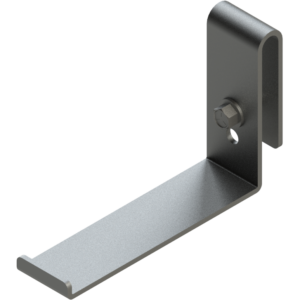

RXL-1044 Ladder to Basket L Support

Colors: Black / White
Offset Height: 2" / 3" / 4"
Width: 4"

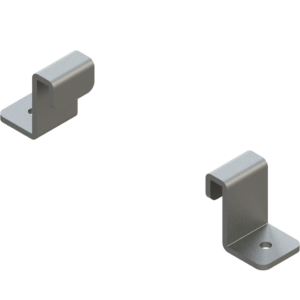

RXL-1068 Runway Clamp Bracket Kit

Colors: Black / White
Stringer: 1.5" / 2"

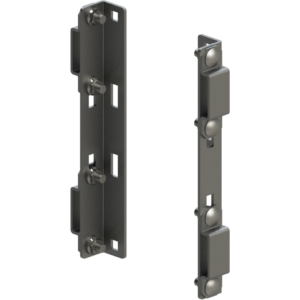

RXL-1082 Runway Offset Kit

Colors: Black / White
Stringer: 1.5" / 2"
Offset Height: 6" / 9" / 12"

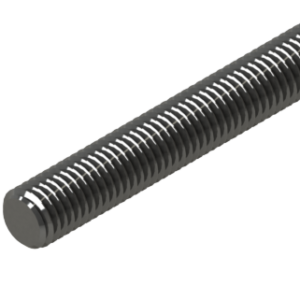

RXL-1088 Threaded Rod

Colors: Clear Zinc
Length: 10'
Thread: 3/8"-16 | 5/8"-11 | 1/2"-13

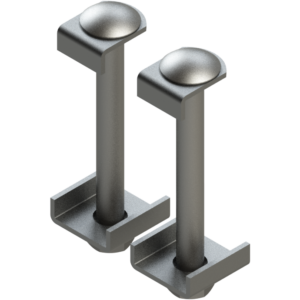

RXL-1645 Auxiliary Framing Clip

Colors: Clear Zinc
Channel: 3/8” x 2" / 9/16” x 2”
RXL-2014 Rack Adapter

Colors: White / Black / Gray
Rack Unit: 1U / 2U / 3U / 4U
RXL-2019 Rack Base Dust Cover

Colors: White / Black / Gray
Width: 19"
RXL-2021 Welded Two Post Rack

Colors: White / Black / Gray
Height: 7' (45U) / 8' (52U)
Style: #12-24 Tapped / 3/8" Square
RXL-2029 Flanged Blanking Panel

Colors: White / Black / Gray
Rack Unit: 1U / 2U
RXL-2030 Flat Blanking Panel

Colors: White / Black / Gray
Rack Unit: 1U / 2U / 3U / 4U
RXL-2031 Brushed Filler Panel

Colors: White / Black / Gray
Rack Unit: 1U / 2U
RXL-2038 Rack Concrete Anchor Kit

Colors: Black Zinc
Quantity: 50 / 100
RXL-2050 Rack Mounting Screw Kit

Colors: Black Zinc
Quantity: 50 / 100
RXL-2051 Standard 2Post Rack Shelf

Colors: White / Black / Gray
Rack Units: 1U / 2U
Style: Solid / Perforated
RXL-2053 Dual Sided 2Post Rack Shelf

Colors: White / Black / Gray
Depth: 27" / 33" / 36"
Style: Solid / Perforated
RXL-2200 Two Post Rack

Colors: White / Black / Gray
Height: 7' (45U) / 8' (52U)
Style: #12-24 Tapped / 3/8" Square
RXL-2410 Adjustable Four Post Rack

Colors: White / Black / Gray
Height: 7' (45U) / 8' (52U)
Depth: 28" / 35" / 42"
Style: #12-24 Tapped / 3/8" Square
RXL-2440 Telescoping Four Post Rack

Colors: White / Black / Gray
Height: 7' (45U) / 8' (52U)
Depth: 30" / 36" / 42"
Style: #12-24 Tapped / 3/8" Square
RXL-2442 Fixed Four Post Rack

Colors: White / Black / Gray
Height: 7' (45U) / 8' (52U)
Depth: 24" / 29" / 36"
Style: #12-24 Tapped / 3/8" Square
RXL-2451 Adjustable Four-Post Rack Shelf

Colors: White / Black / Gray
Depth Range: 24"-36" / 29"-41" / 36"-48"
RXL-2454 Telescopic Four-Post Rack Shelf

Colors: White / Black / Gray
Depth Range: 12"-20" / 18"-32" / 24"-44"
RXL-2540 Leveler Attachment Kit

Colors: White / Black / Gray
QTY: 1 Pair / 2 Pair
RXL-2541 Rack Dolly Skates

Colors: White / Black / Gray
Depth: 12"
RXL-2552 Adjustable Rail Four-Post Racks

Colors: White / Black / Gray
Height: 7' (45U) / 8' (52U)
Depth: 32" / 40" / 42"
Style: #12-24 Tapped / 3/8" Square
RXL-2821 Single Sided Seismic Two-Post Rack

Colors: White / Black / Gray
Height: 7' (45U) / 8' (52U)
Style: #12-24 Tapped / 3/8" Square
RXL-2822 HD Double Sided Seismic Two-Post Rack

Colors: White / Black / Gray
Height: 7' (45U) / 8' (52U)
Style: #12-24 Tapped / 3/8" Square

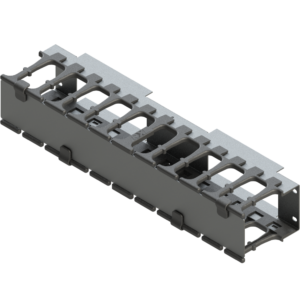

RXL-3010 Horizontal Cable Manager Single Sided

Colors: White / Black / Gray
Rack Units: 1U / 2U / 4U
Cable Fingers: Short / Long

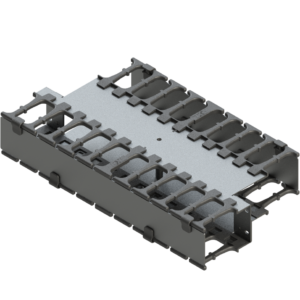

RXL-3110 Horizontal Cable Manager Double Sided

Colors: White / Black / Gray
Rack Units: 1U / 2U / 4U
Cable Fingers: Short / Long

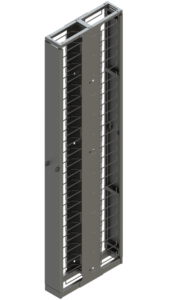

RXL-3335 Double Sided Wired Finger Vertical Cable Manager

Colors: White / Black / Gray
Height (RU): 7' (45U) / 8' (51U)
Width: 6" / 8" / 10" / 12"

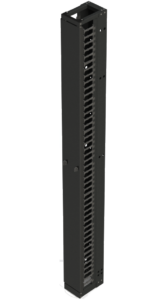

RXL-3343 XVM Single Sided Vertical Cable Manager

Colors: White / Black / Gray
Height (RU): 7' (45U) / 8' (51U)
Width: 6" / 8" / 10"
Cable Fingers: Short / Long

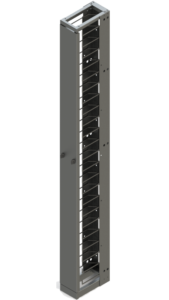

RXL-3344 Single Sided Wire Vertical Cable Manager

Colors: White / Black / Gray
Height (RU): 7' (45U) / 8' (51U)
Width: 6" / 8" / 10" / 12"

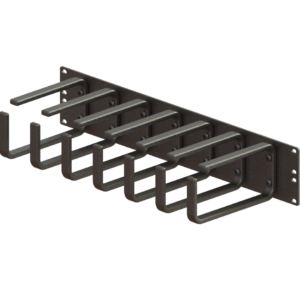

RXL-3346 Horizontal Ring Panel

Colors: White / Black / Gray
Rack Units: 2U / 3U

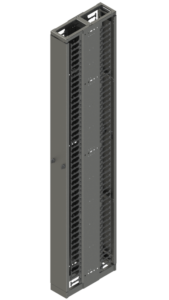

RXL-3353 XVM Double Sided Vertical Cable Manager

Colors: White / Black / Gray
Height (RU): 7' (45U) / 8' (51U)
Width: 6" / 8" / 10"
Cable Fingers: Short / Long

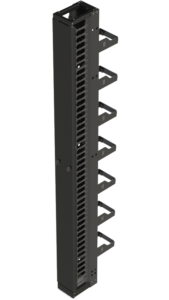

RXL-3363 XVM Combo Vertical Cable Manager

Colors: White / Black / Gray
Height (RU): 7' (45U) / 8' (51U)
Width: 6" / 8" / 10"
Cable Fingers: Short / Long

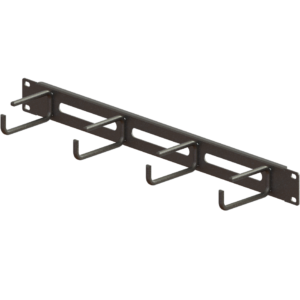

RXL-3400 Horizontal Wire Manager

Colors: White / Black / Gray
Rack Units: 1U / 2U / 3U

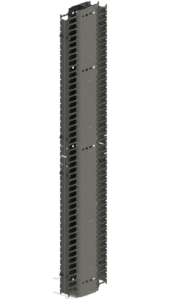

RXL-3500 E-Series Double Sided

Colors: White / Black / Gray
Height (RU): 7' (45U) / 8' (51U)
Width: 6" / 8" / 10"
Cable Fingers: Short / Long
Door Style: Flat / Channel

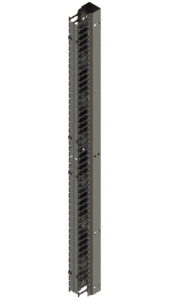

RXL-3510 E-Series Single Sided

Colors: White / Black / Gray
Height (RU): 7' (45U) / 8' (51U)
Width: 6" / 8" / 10"
Cable Fingers: Short / Long
Door Style: Flat / Channel

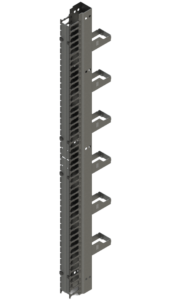

RXL-3520 E-Series Combo

Colors: White / Black / Gray
Height (RU): 7' (45U) / 8' (51U)
Width: 6" / 8" / 10"
Cable Fingers: Short / Long
Door Style: Flat / Channel
RXL-4001 Slim Wall Mount

Colors: White / Black / Gray
Overall Height: 26" / 36"
Rack Units: 2U / 4U / 6U
RXL-4009 Wall Rack Bracket Adapters

Colors: White / Black / Gray
Rack Units: 2U / 3U
RXL-4030 Demarcation Wall Mount

Colors: White / Black / Gray
Rack Units: 18U / 22U / 24U
RXL-4340 Stacking Wall Mount

Colors: White / Black / Gray
Rack Units: 6U / 9U / 12U
Front Door: Solid / Perforated / Plexi-Glass
RXL-4411 Vertical Wall Bracket

Colors: White / Black / Gray
Rack Units: 2U / 4U
RXL-4412 Fixed Vertical Wall Bracket

Colors: White / Black / Gray
Rack Units: 2U / 4U
RXL-4474 Flush Vertical Wall Bracket

Colors: White / Black / Gray
Rack Units: 2U / 4U
RXL-4500 Standard Cube Wall Mount

Colors: White / Black / Gray
Rack Units: 12U / 18U / 25U
Usable Depth: 13" / 18" / 23"
Door Style: Solid / Perforated / Plexi-Glass
Rails: 12#-24 Tapped / Square Punched
RXL-4502 Fixed Heavy Duty Wall Rack

Colors: White / Black / Gray
Rack Units: 8U / 18U / 24U
Overall Depth: 19" / 24" / 30"
RXL-4505 Side Panel Cube Wall Mount

Colors: White / Black / Gray
Rack Units: 12U / 18U / 25U
Usable Depth: 13" / 18" / 23"
Door Style: Solid / Perforated / Plexi-Glass
Rails: 12#-24 Tapped / Square Punched
RXL-4535 Fixed Wall Mount

Colors: White / Black / Gray
Rack Units: 6U / 9U / 12U
RXL-4601 PolyFrame Wall Rack

Colors: White / Black / Gray
Rack Units: 6U / 12U / 18U
Overall Depth: 12" / 18" / 24"
RXL-4750 Swing Rack

Colors: White / Black / Gray
Rack Units: 12U / 18U / 24U
Overall Depth: 12" / 18" / 24"
RXL-5550 Nemesis Cabinet

Colors: White / Black / Gray
Rack Units: 42U / 45U / 48U / 52U
Width: 24" / 28" / 30" / 32"
Depth: 32" / 36" / 40" / 42" / 48"
RXL-5750 Tube Frame Cabinet

Colors: White / Black / Gray
Rack Units: 42U / 45U / 48U / 52U
Width: 24" / 28" / 30" / 32"
Depth: 32" / 36" / 40" / 42" / 48"
Slotted Support Bracket

Use our Grounding Kits to provide grounding between cable runway sections and/or racks. The standard kit includes straps and hardware.

Solid Stringer Runway

The Solid Bar Stringer cable runway is a heavier duty version of our Global Cable Runway. The Solid bar stringers allow for a higher weight load capacity often seen in power applications. This version comes with the Telco style crossmember at 9" rung spacing. Threaded holes are drilled at the ends of the pathway and are to be used in the heavy duty splice and or grounding application.

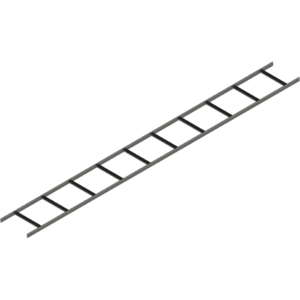

Telco Style Cable Runway

Telco Style Cable Runway provides a solution to cable pathway routes. Fully RoHS 2011/65/EU Compliant. Hardware, accessories and support options are available for this product line. Offered in both powder coated and zinc plated finishes.

Terminal Ground Blocks

Our Terminal Ground Blocks meet BICSI and ANSI mounting recommendations. Use them to attach ground wires to racks
